AKK K331

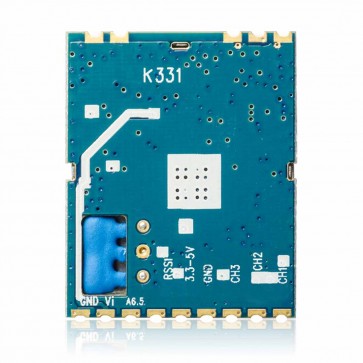

Micro size, universal usage 5.8GHz receiving module. You can easily DIY a video receiver for your monitor or goggles based on this receiving module.

Availability: In stock

$7.99
  • Details

    Details

    • POWER SUPPLY:+3.3~5.0V
    • Current Consumption:200mA , Max
    • Video Output impedance:75Ω, Typ
    • Demodulation system:FM/PLL

    Specifications:
    POWER SUPPLY:+3.3~5.0V
    Current Consumption:200mA , Max
    Operating Temperature:-10~+65 ºC
    Storing Temperature:-30~+85 ºC
    Operating humidity:85%RH

    RF
    Receiving frequency range:5645 ~ 5945MHz
    Voltage Standing Wave Ratio:2:1
    Demodulation system:FM/PLL
    IF:480MHz
    ANT. input impedance:50Ω, Typ.
    LO Frequency stabilization:±100kHz
    LO Frequency Precision:±100kHz
    LO Control:PLL
    Input LO Leak:-55dBm
    Receiving Sensitivity:-93dBm
    Input Level Range:-93 dBm ~+5 dBm

    Video Characteristics
    Video Output impedance:75Ω, Typ.
    Video Output Level:1Vp-p, Typ.
    Video Polarity:NEGATIVE
    Video Frequency Respone:±5 dB, Max. 50Hz ~ 6MHz
    Differential Gain:±5 %, Max
    Differential Phase:±5 Deg., Max
    3Db IF WIDEBAND:16.5MHz
    S/N:38dB, Min

    Audio
    Audio Output impedance:2KΩ, Typ.
    Audio Output Level:1±0.2Vp-p, Typ.
    Audio Output Frequency Range:100Hz ~ 20kHz
    Audio carrier:6.5MHz(AL)
    Audio carrier precision:±30kHz
    S/N (50Hz ~ 15kHz): 50dB, Min
    THD:(50Hz ~ 15kHz, 3 Vp-p): 1.5 %, Max
    Audio input voltage:1.0Vp-p , 1KHz
    Package Included:
    1 x K331 FPV Receiver

    Reviews

    Customer Reviews (1)

    Channel selectionReview by Panos
    Overall
    Quality
    Very good receiver but please be advised that in onder to use Channel selection you have to populate pins 7 and 8 of the RTC6715 with 1K resistors. (Posted on 1/29/2020)
