AKK X1P VTX

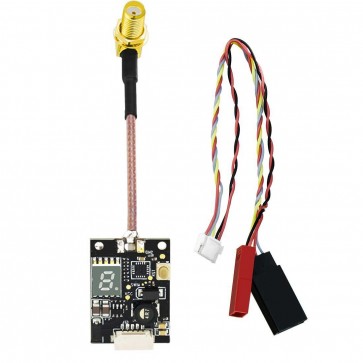

AKK X1P 5.8Ghz Video Transmitter(VTX) 40CH 25mW/200mW/600mW Switchable FPV AV Transmitter with Pigtail for FPV Racing Drone

Availability: In stock

$15.50
  • Details

    Details

    The AKK X1P FPV Video Transmitter(VTX) equipped with switchable output power, and with a soldered extension cable with a 90 degree angle SMA connector, which is perfect for different applications. Options for power output include - turn off output, 25mW, 200mW, and 600mW, which means more pilots can fly together without interference with each other on close frequencies. Now you can fly your aircraft safely without worrying about interfering with other FPV signals.

    Features:

    Long transmission distance and stable performace

    One switching button to set CH, FR and power

    Antenna connector: SMA Female

    25mW/200mW/600mW Switchable FPV Transmitter with Pigtail

    40 channels: cover A,b,E,F,r bands and all frequencies compatible

    Specifications:

    Item name: X1P 5.8Ghz 40CH AV Transmitter with Pigtail

    Modulate: Wideband FM Modulate

    Video Format: NTSC/PAL

    Output Impedance: 50 Ohm

    Output Power: 25mw: 12,13,14 dBm/ 200mw: 22, 23,24 dBm/ 600mw: 26,27,28 dBm

    Antenna connector: SMA Female

    Operating Voltage: 7-24 V

    Supply Current: 25mw: 100 mA/ 200mw: 200 mA/ 600mw: 280 mA

    Operating Temperature : -10 +85 °C

    Video Band Width: 0-18 MHz

    Audio carrier Frequency: 6.5 MHz

    Video Input Level: 0.8,1.0,1.2 Vp-p

    Video Input Impedance: 75 Ohm

    Audio Input Level: 1.0 Vp-p

    Audio Input Impedance: 10K Ohm



    Package includes:

    1x 5.8G X1P video transmitter

    1x Connector and cable set

    1x Product manual

    ArxangelRC

    Reviews

    Customer Reviews (2)

    still not amazing but much better. Review by Thomas Satsky
    Overall
    Quality
    watched a russian guy test the range on the x2p in youtube,12km? so bought it. Though not arrive the range as the video, happy that there is no issue. (Posted on 3/19/2020)
    Very good and compatible transmitter with selectable powerReview by GerdSt
    Overall
    Quality
    I have compared it with my iftrontech nanoStinger 25mW transmitter already in use for several years. The X1P has the same range at 25 mW and the video transmission is better compared to nanoStinger, as I don't require an extra cable connection between camera ground and antenna ground any longer for avoiding horizontal stripes in the image. Also there are no more compatibility problems with bulti-band receivers when using F band as was with nanoStinger. And the price of the X1P is much much less!
    The only drawback is the missing heat sink, as the X1P gets very hot while in use, even more with 200mW or 600mW settings. To ensure a long product life I recommend glueing a little heat sink (available e.g. for embedded processors from electronics shops) to the metal shielding at the backside of the X1P. (Posted on 9/2/2017)
