AKK KC04

AKK KC04 700TVL 120 Degree Lens Camera and FPV Transmitter for Racing Quadcopter

Availability: In stock

$29.99

Details

Details

This AKK KC04 transmits a full range of 40 channels and cover 5bands. Super clear image without fish eye distortion. The image and color quality is also excellent in low illumination environments and can be optimized for night flying applications.  It’s perfect for a wide range of aircraft!

  • 700TVL Resolution,2.8mm Lens
  • 40 channels: Cover A, b, E, F, r bands
  • NTSC Scanning System
  • 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR
  • Small size and light weight, extremely suitable for mini quadcopter

Specifications of Camera:
Resolution: 700TVL
Size: 25* 25mm
Net weight: 9.5g
Total pixels: NTSC: 1020H×508V
Pixels: NTSC: 976H×494V
Signal System: NTSC
Video output: 1.0Vp-p/75Ω
Automatic gain: 0.25/0.50/0.75/1.00 ;Can be up to 55dB
White Balance: automatic
Electronic Shutter: 1/50(1/60)~1/100000S
Gamma Correction: 0.45/1.0
Synchronization : internal
Lens: 2.8mm
Power Supply: 5-12V
Power Consumption: 70mA
Working Temperature: -20 °C ~ 60°C

Specification of Transmitter:
Video Format: NTSC
Output Impedance: 50 Ohm
Transmitting distance > 3000m (open area)
Antenna connector: RP-SMA connector
Operating Voltage: 7-20V
Output Voltage(VOUT): 5V
Supply current: 280 mA
Operating Temperature -10 +85 °C
Video Band Width: 0-8.0 MHz
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm

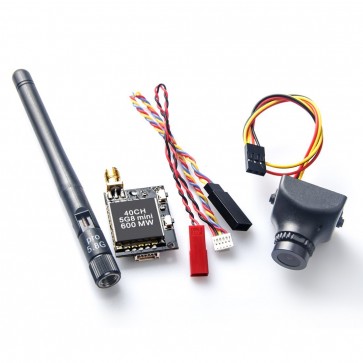

Package includes:
1x 5.8G FPV transmitter
1x 700TVL 2.8mm Lens Camera
1x 5.8G antenna
1x Connector and cable set
1x Manual

Note: Please plug antenna before powering on the vtx to avoid static electricity.

Reviews

Customer Reviews (1)

Just get itReview by Fearcity
Quality
Overall
Totally new to the hobby, and building my 1st quad.
Akk came up in my searching and the price was right. Got it today, and couldn't wait to try it out in the goggles I bought.
Battery voltage into the vtx, found the channel, and smiles instantly.... PICTURE! Clear too!
Went to my house to see how bad reception would be from 50' from garage to house, hmmm still fine.... Went inside, still fine... (brick house) went into another room, still fine..... Long story short, reception was perfect through 5, yes 5 plaster and lathe walls, brick, and through an aluminum sided garage.... COME ON!!
I hope once I'm flying, it's half as good as my bench test.
This was with the stock antennas on vtx and the goggles too....
Again, I'm a noob, but Akk will be getting my business again.... Hands down. (Posted on 10/31/2017)
