AKK K33

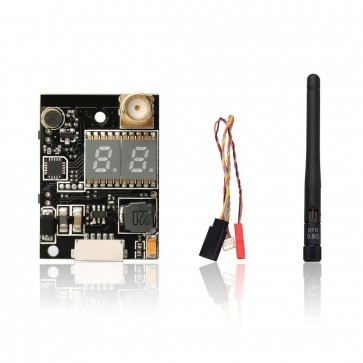

AKK K33 Double Screen Display FPV Audio Video Transmitter RP-SMA Female for 2000M Range

Availability: In stock

$11.99
  • Details

    Details

    Double screen display and push buttons to change channels and frequencies. AKK K33 is able to stall on drones with just a little or even without soldering. The transmitter is compatible with any 5.8GHz receivers. This one is perfect for flying in average area and the 40 channels allow you to find one without interference.

    • 40 channels, cover A, b, E ,F, r bands
    • Push button to change channels and frequencies
    • Double LED display for Channel and Frequency
    • Power off memory: replay the very last frequency band and channel
    • It supports full range of 40 channels including raceband

    Feature:

    This 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR.
    40 channels: Cover A, b, E, F, r bands. Small size and light weight.

    Specification:
    Video Format: NTSC/PAL
    Output Impedance: 50 Ohm
    Transmitting distance: > 3000m (open area)
    Antenna connector: RP-SMA connector
    Operating Voltage: 7-20 V
    Output Power: 600mW
    Output Voltage(VOUT): 5 V
    Supply current: 280 mA
    Operating Temperature: -10 +85 ℃
    Video Band Width: 0-8.0 MHz
    Audio carrier Frequency: 6.5 MHz
    Video Input Level: 0.8,1.0,1.2 Vp-p
    Video Input Impedance: 75 Ohm
    Audio Input Level: 0.5 ,2.0 Vp-p
    Audio Input Impedance: 10K Ohm
    Weight: 15g

    Package includes:
    1X5.8G FPV transmitter
    1X5.8G antenna
    1XConnector and cable set

    Notice: The VTX can supply 5V output for Camera. Please make sure your camera is less than 300mA
    The line of the manual should be "V OUT" "GND" 'VIDEO IN" "GND" "7-24V"
