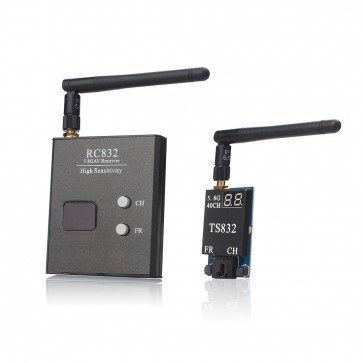

AKK 5.8G 40CH 2000M Range TS832+RC832 FPV Audio Video Transmitter and Receiver for FPV Drone

5.8 HZ transmitter and receiver for your long range FPV needs. Higher frequency means the signals can carry more bands, it supports 5 bands and all frequencies compatible. With the correct setup you can easily fly very far with a standard 5.8Ghz FPV setup. Having more channels you can change your FPV transmitter easily if flying with other FPV pilots as each pilot will fly on a different frequency so your FPV video does not interfere with theirs.

Availability: In stock

Regular Price: $30.99

Special Price $21.69

Company

Details

Details

  • 40 Channel 600mW AV wireless receiver, designed for areas with too many frequencies in the air
  • It supports 5 bands and all frequencies compatible
  • Easily Change frequency channels and bands by pressing button
  • Double-screen display for channels and bands
  • It supports full range of 40 channels including raceband

Feature:
40 Channel 5.8 GHz 600mW AV wireless transmitter and receiver set, designed for areas with too many frequencies in the air.
It supports 5 bands and all frequencies compatible. Easily Change frequency channels and bands by pressing button.
Double-screen display for channels and bands. It is a Plug and play FPV transmitter and receiver set for Aerial Filming. Small size and light weight.

Specification for TS832 Transmitter:
This 5.8GHz 40CH FPV transmitter has double push buttons for easy changing CH and FR.
40 channels: Cover A, b, E, F, r bands
Video Format: NTSC/PAL
Output Impedance: 50 Ohm
Transmitting distance: > 3000m (open area)
Antenna connector: RP-SMA connector
Operating Voltage:7-16V
Supply current: 220 mA
Operating Temperature: -10 +85 ℃
Video Band Width: 0-8.0 MHz
Audio carrier Frequency: 6.5 MHz
Video Input Level: 0.8,1.0,1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5 ,2.0 Vp-p
Audio Input Impedance: 10K Ohm

Specification for RC832 Receiver:
Power Supply: DC 12V
Antenna impedance: 50¦Ø
Video impedance: 75¦Ø
Working Frequency: 5.8GHz
Available Channel: 40CH
Consumption Current: 200mA, Max
Antenna Gain: 2dbi
Antenna Connector: RP-SMA
Audio Carrier: 6.5MHz
Video Format : NTSC/PAL
Dimension: 80x65x15mm
Weight: 85g

Package Included:
1 x RC832 FPV Receiver
1 x TS832 FPV Transmitter
2 x Antenna
2x Power cable
1 x AV cable
1 x User manual

Notice: Please correct connection and change the channel.
