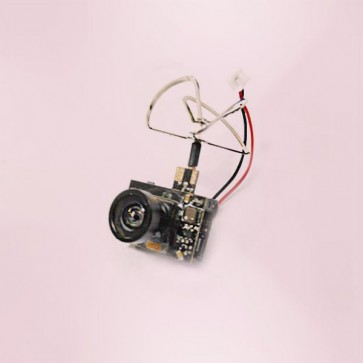

TX153 AIO Camera

Specification and Parameters :
Output power:O/25mW/50mW/200mW adjustable(Set output power on O,to avoid frequency interference) Input power: 3.2-5.5V Current consumption:250mA-510mA(25mW)
270mA-640mA(50mW)
330mA-740mA(200mW)
Camera resolution:600TVL
Video system: NTSC
Mini illumination: 1 lux
Field of view: 120° FOV 150°DFOV
Antenna:Clover antenna
Frequency:5.8GHz 5 bands 40 channels,
with Raceband: 5658-5917 MHZ
Size: 19.5*14mm(L*W)
Weight: 5g
Operation Instruction:
1.Powering on the vtx, blue LEDdisplay O, indicating the vtx is powered on,but it is in off status without any transmission.
2.short-press the button to change channel(CH),digital display will change synchronously. Digital display changes cyclically from 1 to 8.
3.Long-press the button for 2 seconds until digital display flicker.Then short-press the button to change the frequency band(FR),digital display will change synchronously. Digital display changes cyclically fromA、b、E、F、r.
4.Long press the button for 5 second until digital display flicker.Then short-press the button to change the power,25mW/50mW/200mW (one hyphen stands for 25mW, two hyphens stand for 50mW, and three hyphens stand for 200mW).
5.seconds after setting.CH.FR and power will flicker alternately.
Notice:The vtx has memory for settings. To change the settings, please repeat steps as above.
