AKK X1 VTX

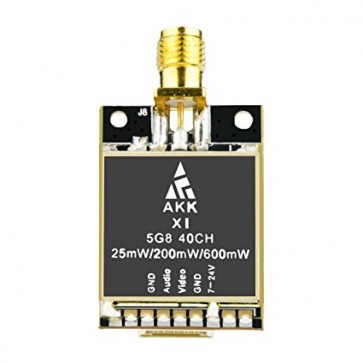

AKK X1 FPV VTX 25mW, 200mW, 600mW Power Switchable 5.8GHZ Video Transmitter with Push Button and Digital Display
Sign up to get notified when this product is back in stock

Availability: Out of stock

$12.99

Details

Details

Bright display, easy button control, the AKK X1 5.8 GHz Video Transmitter(VTX) makes it possible for everyone to fly their aircraft better. It comes with silicone wiring and standard RP-SMA connector which can easily replaced by a pigtail if necessary. Size is pretty much standard so you won't have any trouble fitting it to your quad. X1 transmitter accepts any voltage in range 7-24V meaning you can fit it to almost any setup up to 5S.

Features:

One switching button to set CH, FR and power

Independent video and audio signal outputs

Super mini size and light weight,only 6.8g

Long transmission distance and stable performace

40 channels: cover A,b,E,F,r bands and all frequencies compatible.

Specifications:

Item name: X1 5.8Ghz 40CH AV Transmitter

Modulate: Wideband FM Modulate

Video Format: NTSC/PAL

Output Impedance: 50 Ohm

Output Power: 25mw: 12,13,14 dBm

200mw: 22, 23,24 dBm

600mw: 26,27,28 dBm

Antenna connector: RP-SMA connector

Operating Voltage: 7-24 V

Supply Current: 25mw: 100 mA

200mw: 200 mA

600mw: 280 mA

Operating Temperature : -10 +85 ℃

Video Band Width: 0-18 MHz

Audio carrier Frequency: 6.5 MHz

Video Input Level: 0.8,1.0,1.2 Vp-p

Video Input Impedance: 75 Ohm

Audio Input Level: 1.0 Vp-p

Audio Input Impedance: 10K Ohm

Dimension: 28.5X20X8mm

Package includes:

1x 5.8G X1 transmitter

1x 5.8G antenna

1x Connector and cable set

1x Product manual



Notice: The vtx has memory for settings. To change the settings, please repeat steps as the product manual.



Video:

GAPiT FPV

Reviews

Customer Reviews (2)

Very happyReview by Andrei
Overall
Quality
It's like a common basic VTX but settings are much more easy with the button and digit display, Also I have replaced the antenna plug to MMCX. I've got nearly 800 meters of usable videolink at only 25 mW, that is great! I did not get it with the VTXes I owned before. (Posted on 8/3/2018)
Good vtx for the priceReview by Matt
Overall
Quality
I have been using this for a few weeks now with no issues . It has been reliable and doesn't get too hot. Build quality is good. The only suggestion/wish I have was to use an SMA connector instead of the RP SMA. Other than that a good vtx! (Posted on 9/14/2017)
