AKK TS5823

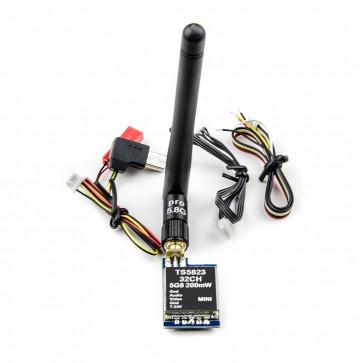

AKK TS5823 FPV VTX 200MW 5.8G 32Ch Mini AV FPV Transmitter RP-SMA for FPV Multi-rotors


Only 3 pcs.

Sign up to get notified when this product is back in stock

Availability: Out of stock

$8.99

Details

Details

The TS5823 FPV VTX 5.8GHz video transmitter packs a 200mw signal strength which was more than enough power for FPV quad racing. It was super easy to install on quads and get to working within minutes. You get a micro USB connector so you can connect straight to a GoPro and it comes with normal cables, so you can connect to any camera you want.

  • Small size and light weight
  • 32 channels: Cover A, B, E, F, bands
  • Supply Current : 190mA ,Video Format: NTSC/PAL
  • Operating Voltage: 7.0V-24V
  • Audio Carrier Frequency : 6.5 MHz

Features:
This 5.8G 32CH AV Transmitter small size and light weight,easy to changing CH, 32 channels: Cover A, B, E, F, bands.

Specifications:
Output Impedance: 50 Ohm
Video Format: NTSC/PAL
Antenna Connector: RP-SMA Connector
Output Power: 23-24 dBm
Operating Voltage: 7.0-24V
Supply Current: 190mA
Operating Temperature: -10-+85 ℃
Video Band Width: 0-8.0 MHz
Audio Carrier Frequency : 6.5 MHz
Video Input Level: 0.8-1.2 Vp-p
Video Input Impedance: 75 Ohm
Audio Input Level: 0.5-2.0 Vp-p
Audio Input Impedance: 10K Ohm
Dimension: 40mm x 23mm x 8mm

Package Included:
1 x TS5823 VideoTransmitter Module
1 x Antenna
3 x Connect Cables
